ENCODER 18S
| Type | C (Open collector) | V (Line Drive) | |
|---|---|---|---|
| Power Supply (Vcc) | DC 4.5~13.2 V (Ripple 100mV (P-P) | DC 4.5~5.5 V (Ripple 100mV (P-P) | |
| Current consumption | 30mA Max | 30mA Max | |
Output Voltage | "H" | - | 2.5V Min |
| "L" (at Maximum Sink Current) |
0.5V Max | 0.5V Max | |
| Maximum Sink Current | 20mA | 20mA | |
|
| 400P/R or less | 120k Hz | 120k Hz |
| 500P/R or more | 240k Hz | 240k Hz | |
| Rise & Fall time | 1μs Max | 100ns Max | |
| Starting Torque | 4.9x10-4 N．m Max | |
|---|---|---|
Shaft Loading | Radial | 2.94 N |
| Thrust | 4.9 N | |
| Moment of Inertia | 1x10-8 kg．m2 | |
|
Angular Acceleration |
1x10-5 rad/s2 | |
| Maximum allowable speed | 6000 rpm | |
| Net weight | 20g Max(Without Cable) | |
| Operating temperature | -10~+85°C |
|---|---|
| Storage temperature | -30~+85°C |
| Operating humidity | RH 85% Max(with no condensation) |
| Vibration resistance | 10~55 Hz / 1.5mm X,Y,Z Each 2h |
| Shock resistance | 490m/s2,11ms X,Y,Z Each 3 times |
| Ingress Protection | IP50 |

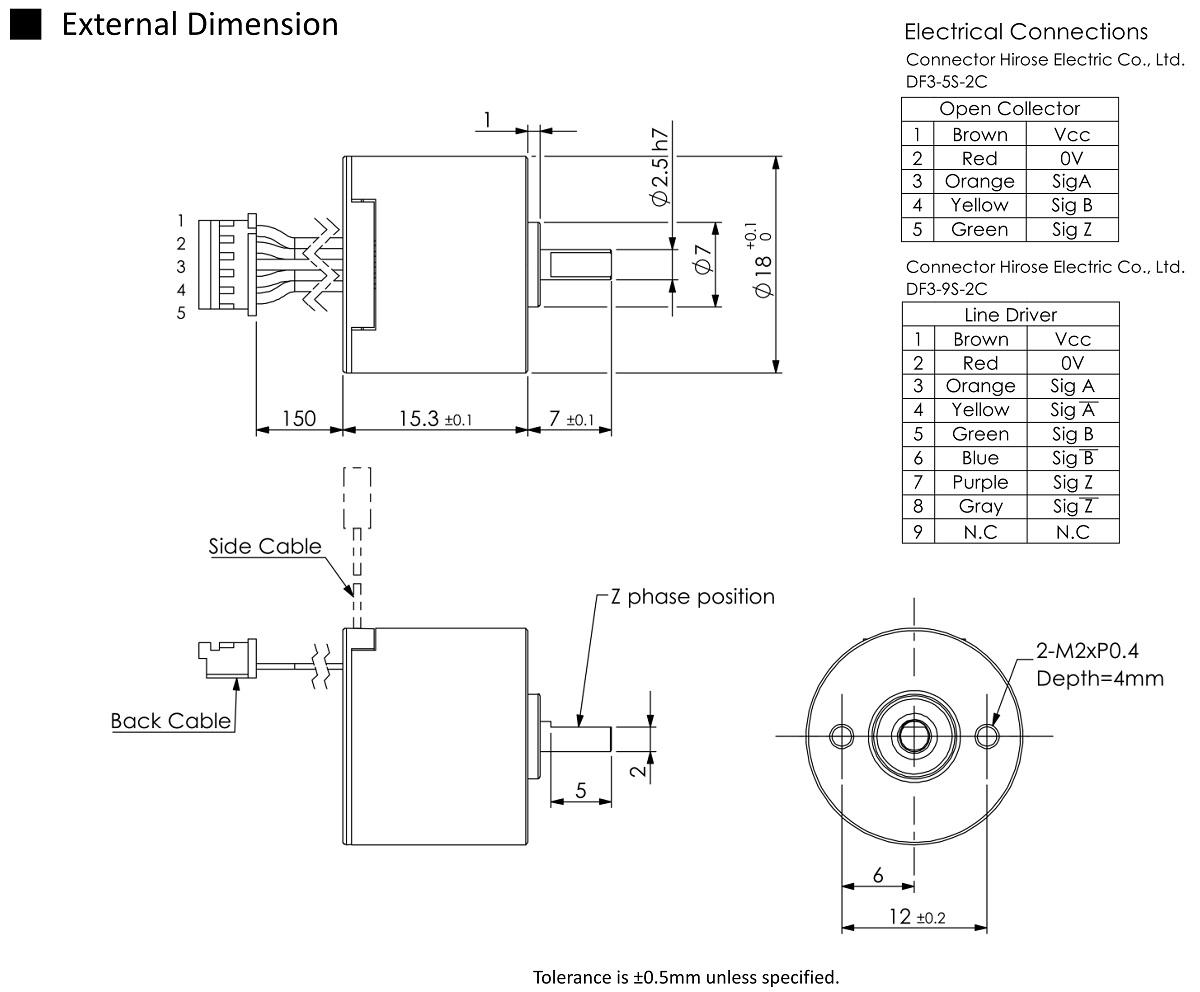

18S
| Resolution | 100,160,200,300,360,400,500,800,1000,1024,1600 |
|---|---|
| Output mode | C： A,B,Z Open Collector Output V： A, B, Z Line Driver Output |
|
1：Back Cable Out-let |
|
|
Cable length |
15：150mm |
