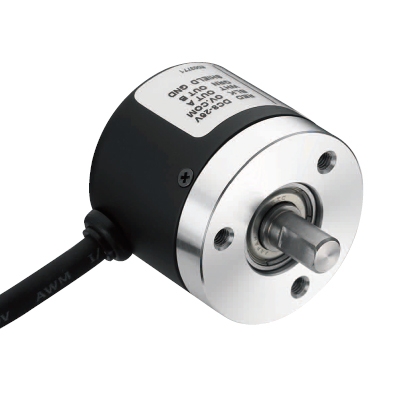

ENCODER ES32
Dimension Download
ES32.pdf
ENCODER ES32
Outer diameter:32 mm
Shaft diameter:6 mm
Resolution:10 ~ 1024 P/R
Protection:IP50 / IP50C
Q'ty :
Inquiry
Electrical Specifications
Mechanical Specifications
Environmental Specifications
Option

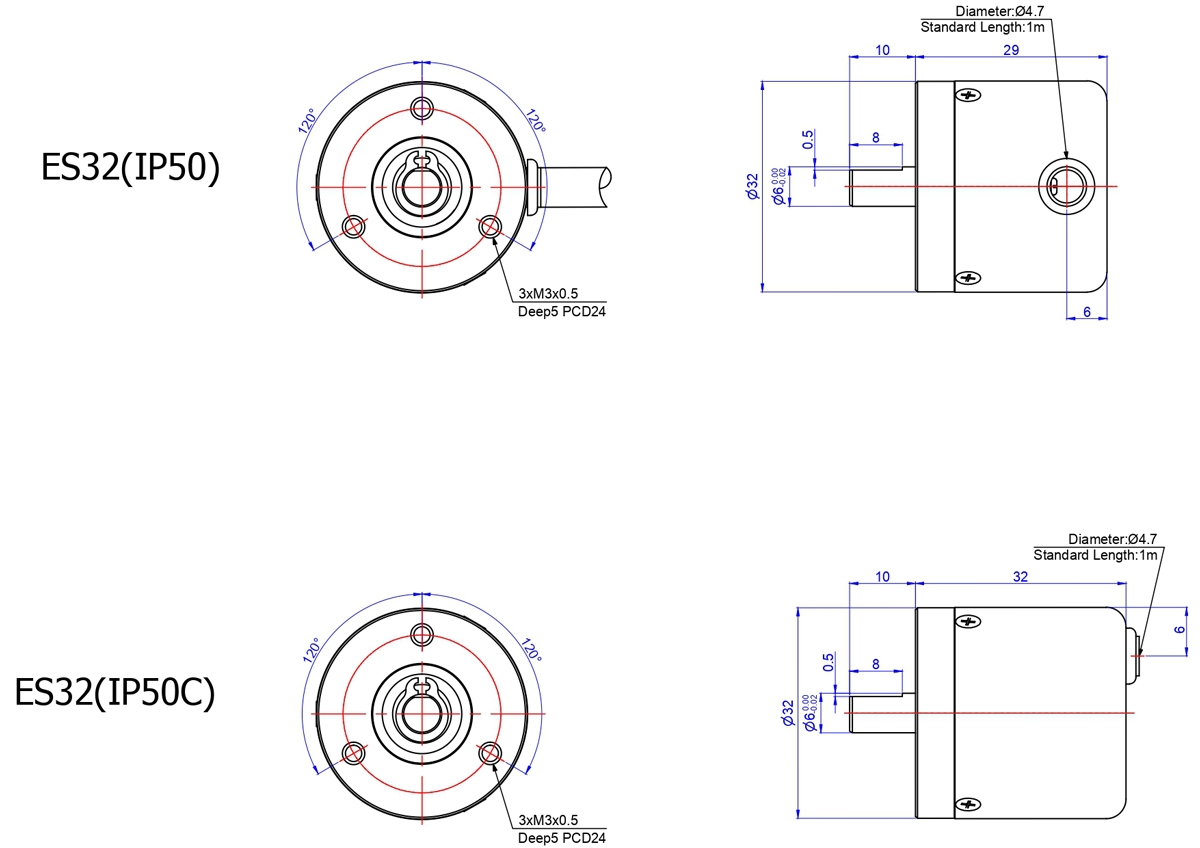

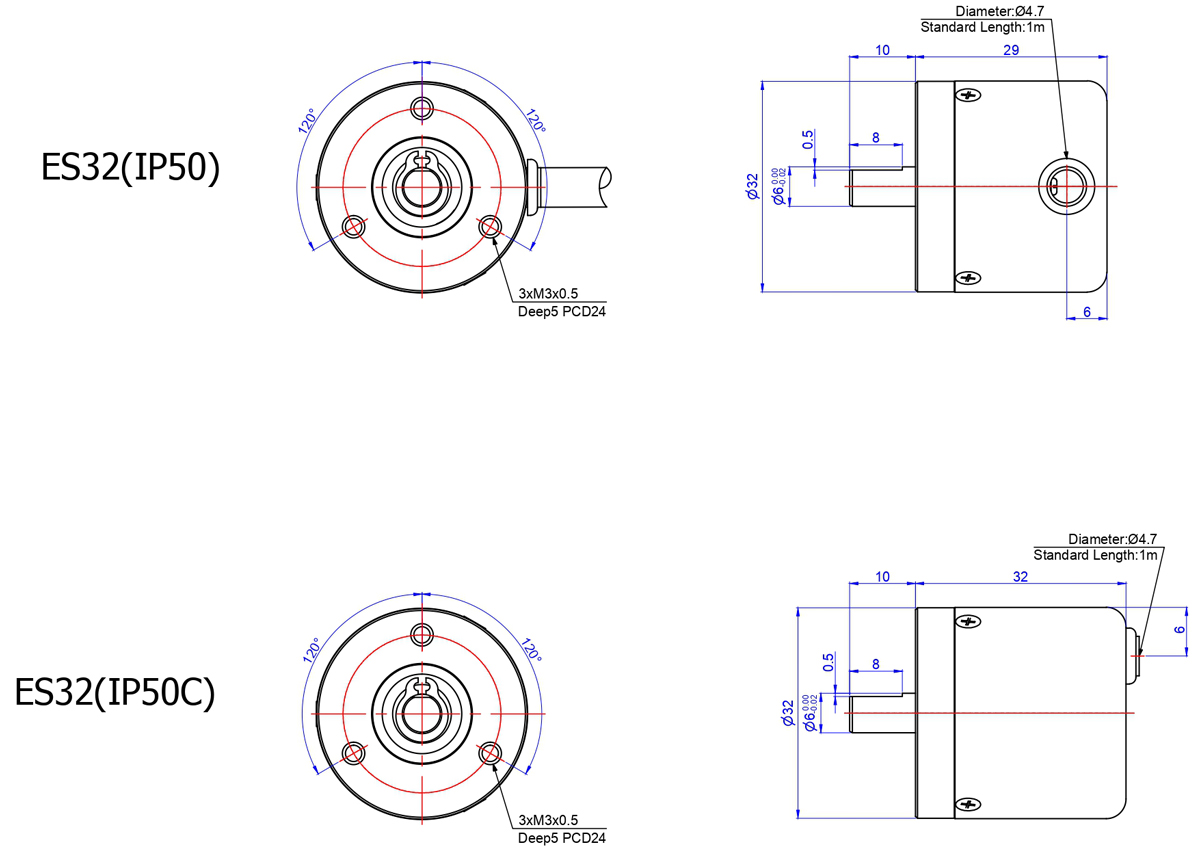

Dimensions
Detection System
Increamental
Output Wave
Square Wave
Encoder Resolution
10,40,50,60,100,150,200,250,300,360,400,500,600,800,1000,1024
Output Signal
AB phase
Output Type
NPN Voltage,NPN Open collector
Rated Voltage
DC5~12V or DC10~26V (NPN Voltage output),
DC5~26V (NPN Open collector output)
Current Consumption
≦20mA
Output Capacity
Source current:20mA,Residual voltage:0.5V or less
Max. Response Frequency
10K Hz~100K Hz Max
Output Phase Difference
A,B phase different 90°±45° (T/4±T/8)
Signal Characteristic
2us or less
Polarity
Against reverse protection
Shaft Diameter
6mm
Max. Shaft Load
Axial:0.5 Kg, Radial :1 Kg
Starting Torque
20 gf-cm or less
Max. Speed of Main Shaft
6000 rpm
Vibration
10g(10±1,500Hz)
Shock
20g per 11ms
Cable
ø4.7,1m long
Weight
≦100g
Operating Temperature
-10℃~60℃,95% RH (Non-condensing, Non-freezing)
Storage Temperature
-20℃~80℃ (Non-condensing, Non-freezing)
Protection Degree
IP50/IP50C
ES32
Encoder Resolution
10, 40.50,60,100,150,200 250,300,360,400,500,600 800,1000,1024
Output Signal
2
:
AB phase
Output Type
LV
:
NPN Voltage 【5-12VDC】
HV
:
NPN Voltage 【10-26VDC】
C
:
NPN Open Collector 【5~26VDC】
Rated Voltage
Blank
:
5-12VDC
Blank
:
10-26VDC
Blank
:
5~26VDC
