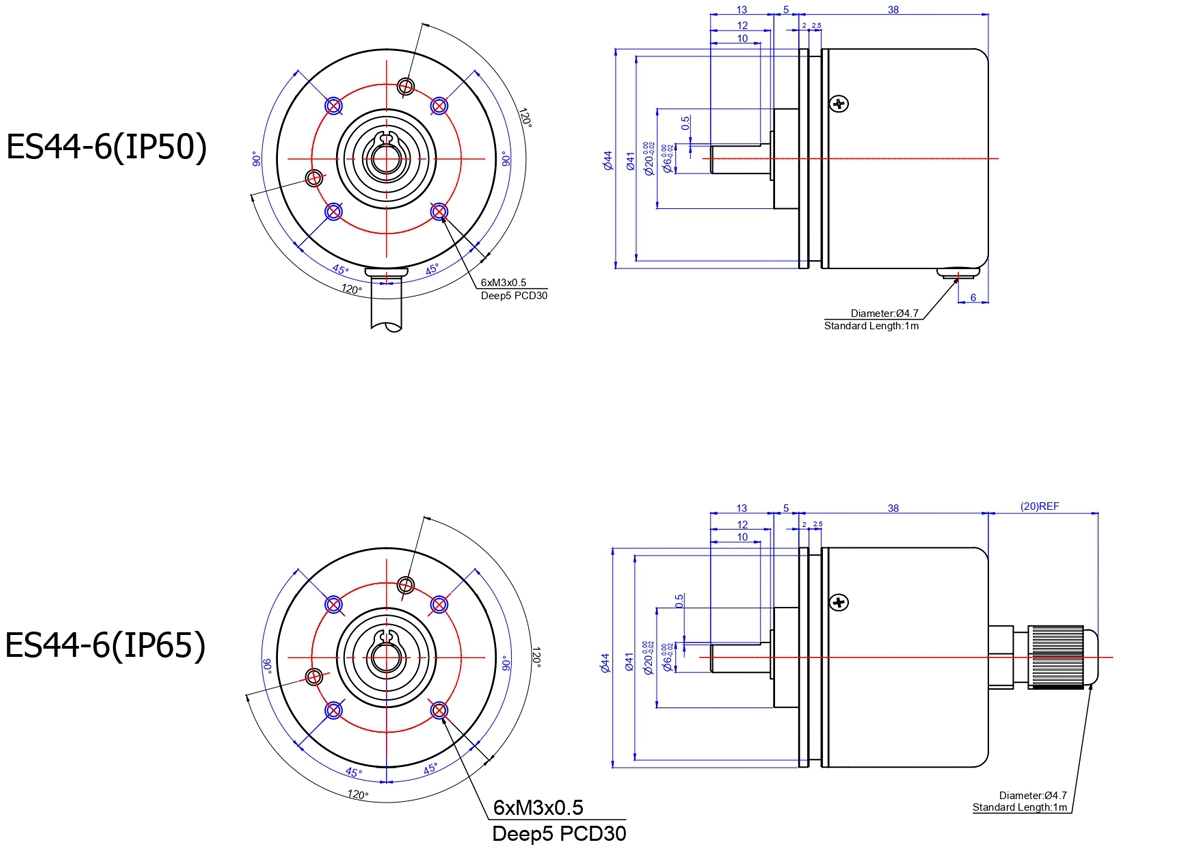

Dimension Download

ES44-6.pdf

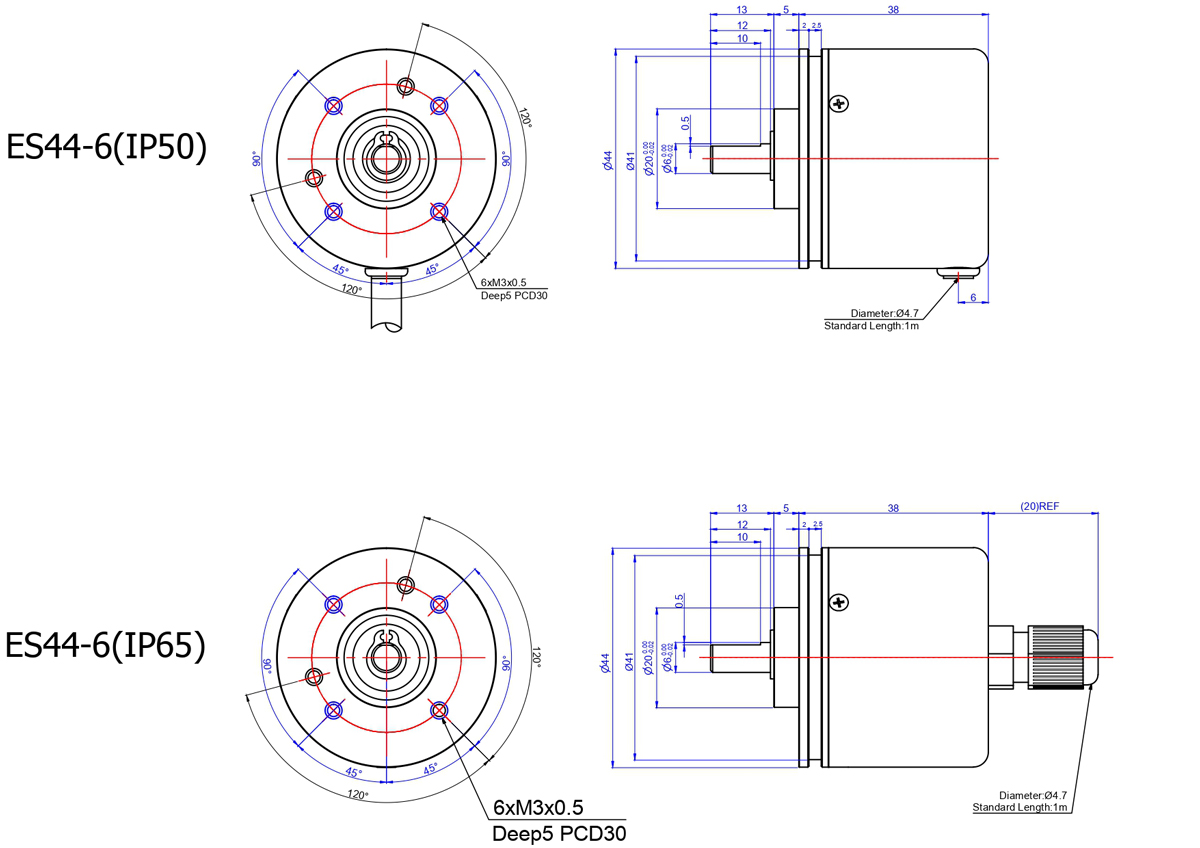

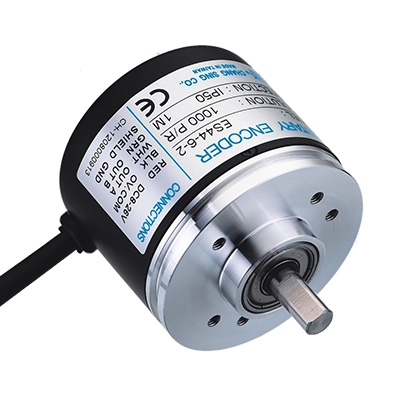

ENCODER ES44-6
Outer diameter:44 mm
Shaft diameter:6 mm
Resolution:5 ~ 2500 P/R
Protection:IP50 / IP65
Detection System Increamental
Output Wave Square Wave
Encoder Resolution 5,10,12,20,30,40,50,60,100,150,180,200,250,300,360,400,500,600,720,
800,900,1000,1024,1200,1500,1800,2000,2048,2500
Output Signal AB phase , ABZ low phase , AB+Z high phase
Output Type NPN Voltage, NPN Open collector, Push pull,  Line driver
Rated Voltage DC8~26V , DC5V fixed
Current Consumption ≦60mA
Output Capacity Source current:20mA,Residual voltage:0.5V or less
Max. Response Frequency 10K Hz~100K Hz Max
Output Phase Difference A,B phase different 90°±45° (T/4±T/8),Z phase T±T/2
Signal Characteristic  2us or less
Polarity Against reverse protection(not with DC5V)
Shaft Diameter 6mm
Max. Shaft Load ( 10 ~ 400PPR)Axial: 1 kg, Radial :2 kg
(over 400 PPR)Axial:0.5 kg, Radial :1 kg
Starting Torque 30 gf-cm or less
Max. Speed of Main Shaft 6000 rpm
Vibration 10g(10±1,500Hz)
Shock 20g per 11ms
Cable ø4.7,1m long
Weight ≦200g
Operating Temperature -10℃~60℃,95% RH (Non-condensing, Non-freezing)
Storage Temperature -20℃~80℃ (Non-condensing, Non-freezing)
Protection Degree IP50/IP65
ES44-6
Encoder Resolution 5,10,12,20,30,40,50,60,100,150,180,200,250,300,360,400,500,600,720,800,900,1000,1024, 1200,1500,1800,2000,2048, 2500
Output Signal 2AB phase
3ABZ low phase
4AB+Z high phase
Output Type BlankNPN Voltage  【8~26VDC】
CNPN Open collector  【8~26VDC】
PPush pull  【5~26VDC】
LLine driver  【5VDC】
HLLine driver  【3.5~30VDC】
Rated Voltage Blank8~26VDC
5V5VDC
