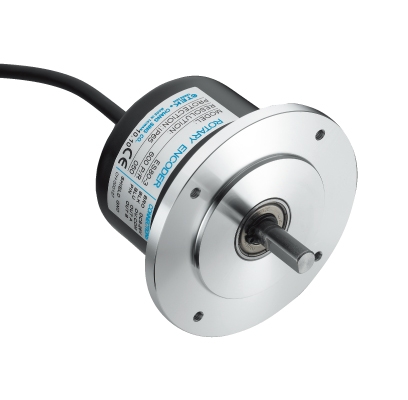

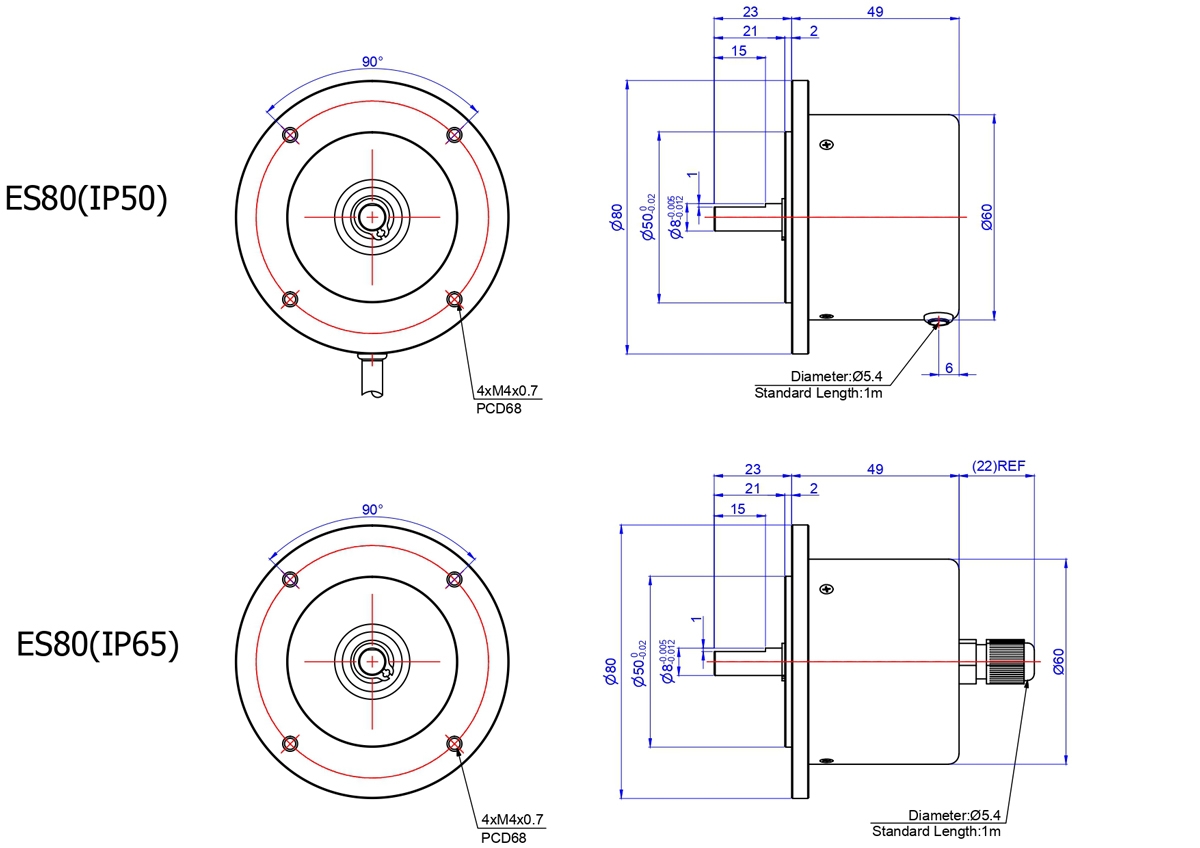

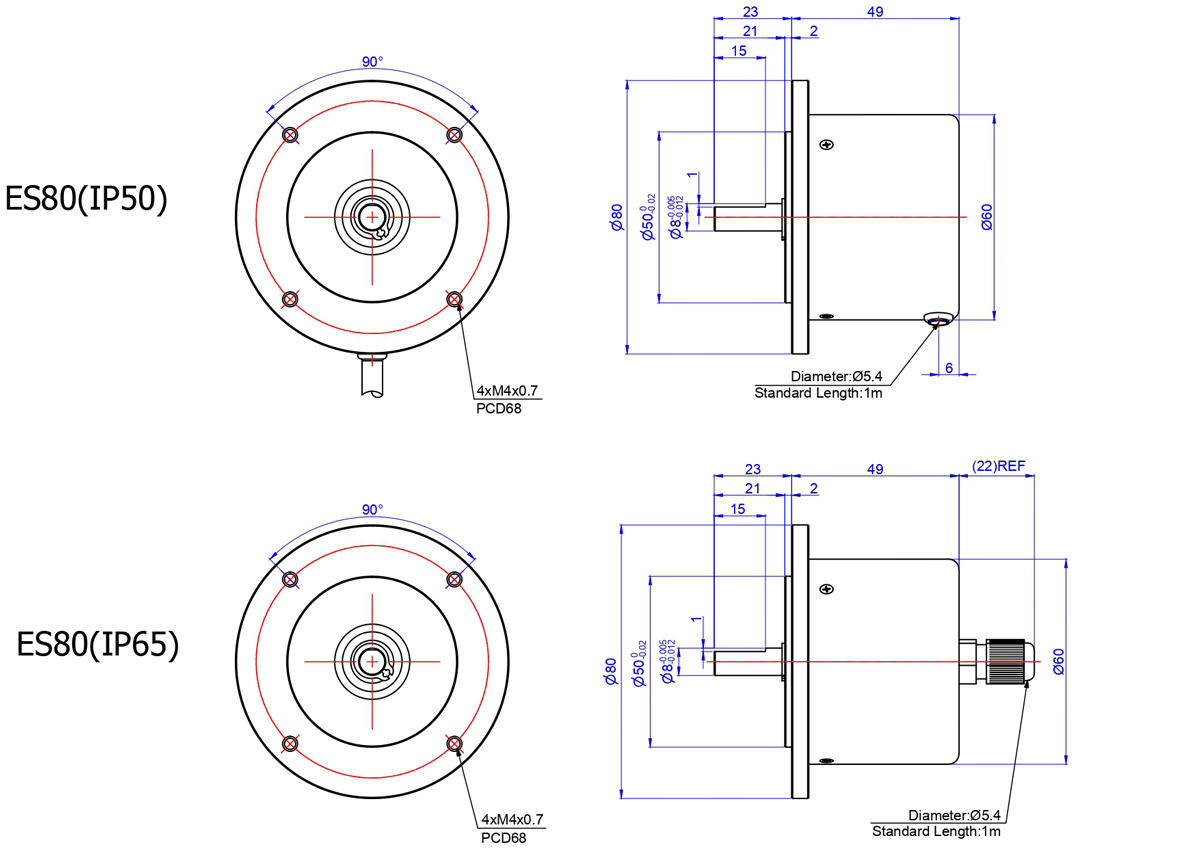

Detection System | Increamental |
---|---|
Output Wave | Square Wave |
Encoder Resolution | 5,10,12,20,30,40,50,60,100,150,180,200,250,300,360,400,500,600,720, 800,900,1000,1024,1200,1500,1800,2000,2048,2500 |
Output Signal | AB phase , ABZ low phase , AB+Z high phase |
Output Type | NPN Voltage, NPN Open collector, Push pull, Line driver |
Rated Voltage | DC8~26V , DC5V fixed |
Current Consumption | ≦60mA |
Output Capacity | Source current:20mA,Residual voltage:0.5V or less |
Max. Response Frequency | 10K Hz~100K Hz Max |
Output Phase Difference | A,B phase different 90°±45° (T/4±T/8),Z phase T±T/2 |
Signal Characteristic | 2us or less |
Polarity | Against reverse protection(not with DC5V) |
Shaft Diameter | 8mm |
---|---|
Max. Shaft Load | ( 10 ~ 400PPR)Axial: 4 kg, Radial : 8 kg (over 400 PPR)Axial: 2 kg, Radial : 4 kg |
Starting Torque | 260 gf-cm or less |
Max. Speed of Main Shaft | 6000 rpm |
Vibration | 10g(10±1,500Hz) |
Shock | 20g per 11ms |
Cable | ø5.4,1m long |
Weight | ≦420g |
Operating Temperature | -10℃~60℃,95% RH (Non-condensing, Non-freezing) |
---|---|
Storage Temperature | -20℃~80℃ (Non-condensing, Non-freezing) |
Protection Degree | IP50/IP65 |
Encoder Resolution | 5,10,12,20,30,40,50,60,100,150,180,200,250,300,360,400,500,600,720,800,900,1000,1024, 1200,1500,1800,2000,2048, 2500 |
---|---|
Output Signal | 2:AB phase 3:ABZ low phase 4:AB+Z high phase |
Output Type | Blank:NPN Voltage 【8~26VDC】 C:NPN Open collector 【8~26VDC】 P:Push pull 【5~26VDC】 L:Line driver 【5VDC】 HL:Line driver 【3.5~30VDC】 |
Rated Voltage | Blank:8~26V DC 5V:5VDC |
