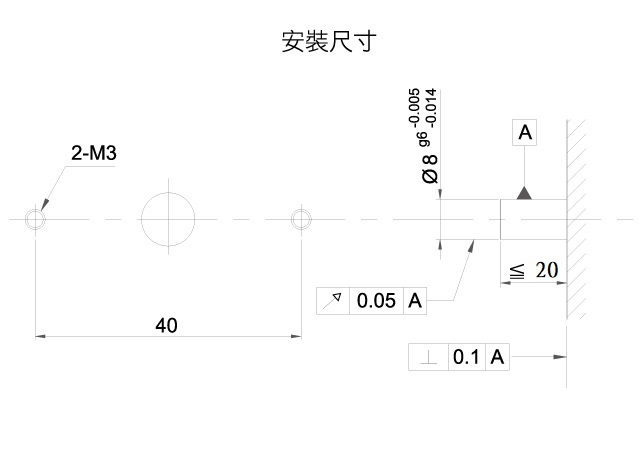

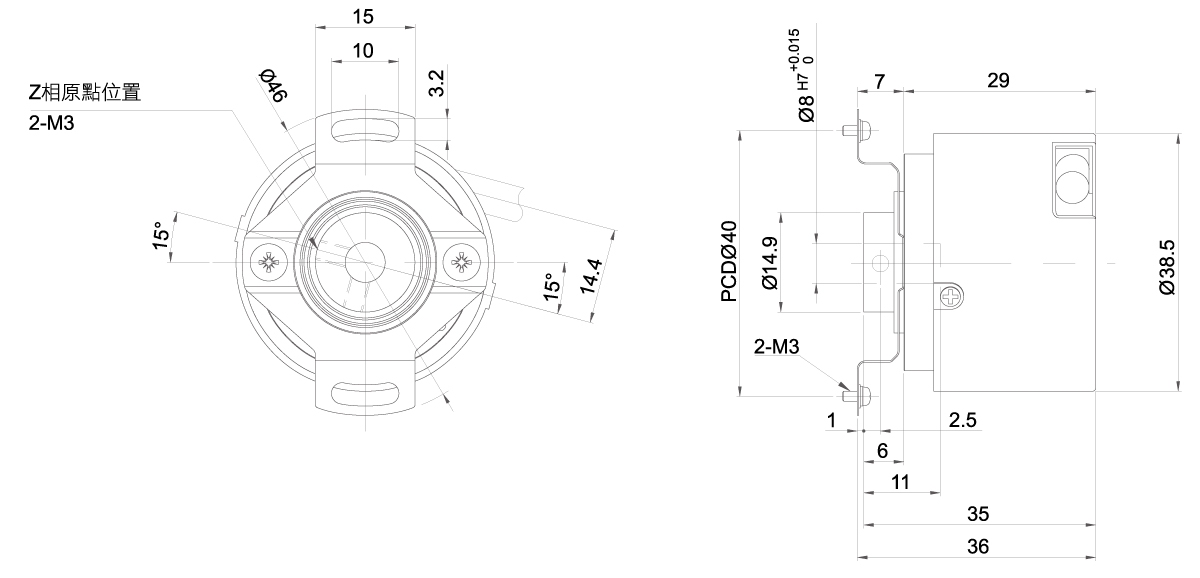

Dimension Download

35H-20尺寸圖.pdf
ENCODER 35H-20
Outer diameter：38.5 mm
Hollow diameter：6 / 8 mm
Depth of Hollow：20 mm
Resolution：50 ~ 2500 P/R
Protection：IP50
Inquiry
Model Open collector Push pull Line driver
Allowable ripple 3% rms max.      3% rms max.      -
Current consumption   50mA max. 50mA max. 50mA max.
Signal waveform Two-phase + home position   Two-phase + home position   Two-phase + home position
Maximum response frequency 200kHz 200kHz 200kHz
Duty ratio 50 ± 25% 50 ± 25% 50 ± 25%
Phase difference width 25 ± 12.5% 25 ± 12.5% 25 ± 12.5%
Signal width at home position 100 ± 50% 100 ± 50% 100 ± 50%
Output Rise/Fall time 1 μs max.(when cable length is 1 m) 1 μs max.(when cable length is 1 m) -
Output type NPN open collector output Push pull    Line-driver
Output logic Negative logic (active low) Positive logic (active high) Positive logic (active high)
Output Current"H" - 10 mA max. -
"L" - 30 mA max. -
Output voltage"H" - 【(Load power voltage)-2.5V】min. 【(Load power voltage)-2.5V】min.
"L" 0.4 V max. 0.6V max. 0.5 V max.
Inflow current 30 mA max. - -
Load power voltage 30 VDC max. 30 VDC max. -
Starting torque  ≦9.8×10-4 Nm
Angular acceleration  1×105 rad/s2

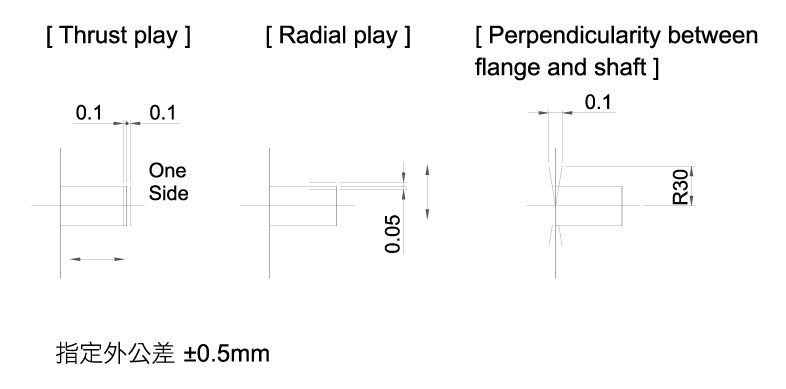

Shaft loading  Radial：29.4 N
Thrust：9.8 N
Moment of inertia  8 × 10-7 kgm2
Maximum allowable speed (Note1)  6000 r/min
Net weight  130 g max.
Operating temperature  -10 ~ +70℃
Storage temperature  -30 ~ +80℃
Operating humidity  RH 85% max. No condensation
Vibration resistance  10~55Hz / 1.5mm 2h
Shock resistance  294m/s2 ,11ms X,Y,Z Each 3 times
Protection  Simple dust protection：IP50
35H
Resolution 50,100,200,250,300,360,400,500, 600,720,800,900,1000,1024,1200, 1800,2000,2048,2500
Output phase 2：AB phase
3：ABZ Low
4：AB+Z High
Output form C：NPN Open collector  【10.8~26.4VDC】
P：Push pull  【10.8~26.4VDC】
L：Line driver  【4.75 ~ 5.25VDC】
Voltage 10.8~26.4VDC
10.8~26.4VDC
4.75 ~ 5.25VDC
