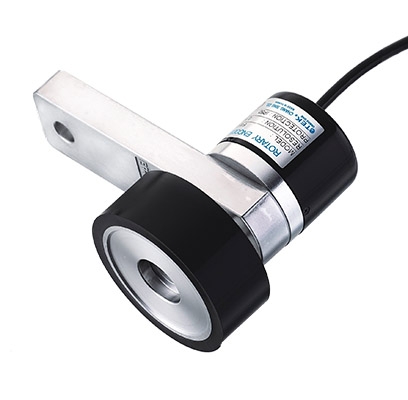

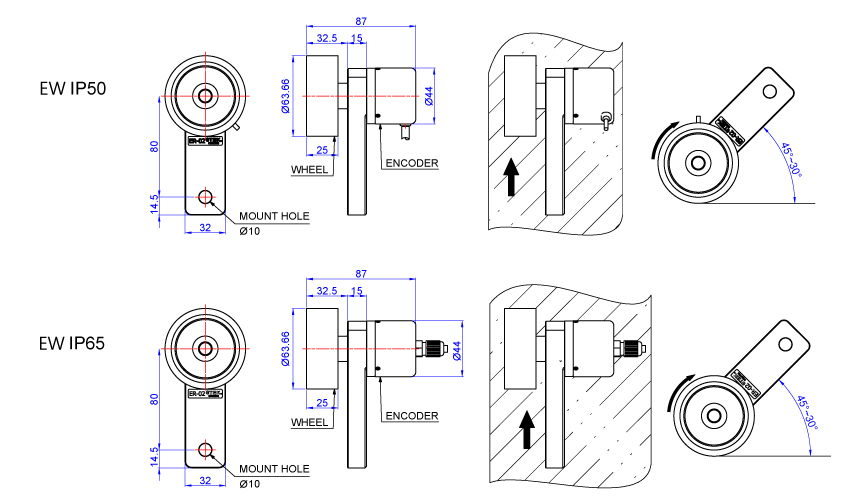

ENCODER EW
| Detection System | Increamental |
|---|---|
| Output Wave | Square Wave |
| Encoder Resolution | 100,10,5,2,1,0.5,0.2,0.1 mm/pulse |
| Output Signal | A phase or AB phase |
| Output Type | NPN Voltage, NPN Open collector, Push pull, Line driver |
| Rated Voltage | DC8~26V , DC5V fixed |
| Current Consumption | ≦60mA |
| Output Capacity | Source current:20mA,Residual voltage:0.5V or less |
| Max. Response Frequency | 10K Hz~100K Hz Max |
| Output Phase Difference | A,B phase different 90°±45° (T/4±T/8) |
| Signal Characteristic | 2us or less |
| Polarity | Against reverse protection(not with DC5V) |
| Wheel material | PU silicon rubber (HS 70) |
|---|---|
| wheel circumference | 200mm ± 0.1% |
| Max. Speed of Main Shaft | 8m/sec |
| Vibration | 10g(10±1,500Hz) |
| Shock | 20g per 11ms |
| Cable | ø4.7,1m long |
| Weight | ≦450g |
| Operating Temperature | -10℃~60℃,95% RH (Non-condensing, Non-freezing) |
|---|---|
| Storage Temperature | -20℃~80℃ (Non-condensing, Non-freezing) |
| Protection Degree | IP50/IP65 |

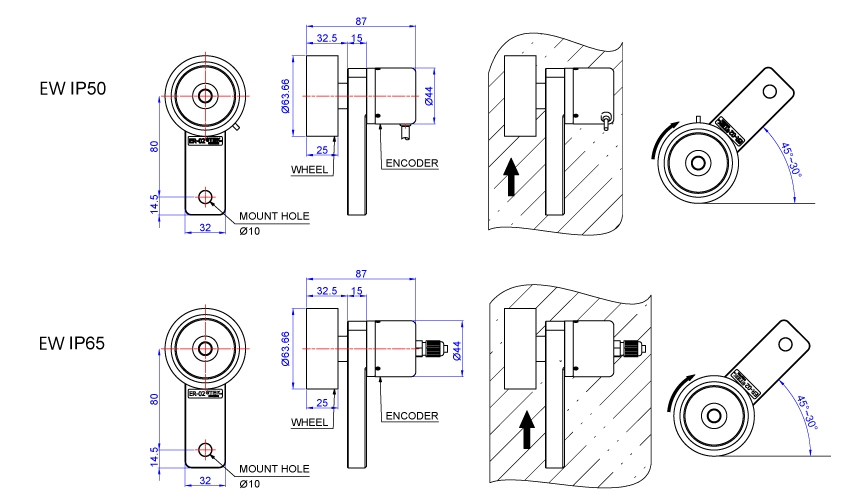

EW
| Wheel material | 100,10,5,2,1,0.5,0.2,0.1 mm/pulse |
|---|---|
| Output Signal | 1:A phase 2:AB phase 3:ABZ phase |
| Output Type | Blank :NPN Voltage C :NPN Open collector P :Push pull L :Line driver 5V DC HL:Line driver 5~26VDC |
| Rated Voltage | Blank:8~26V DC 5V:5V DC |
